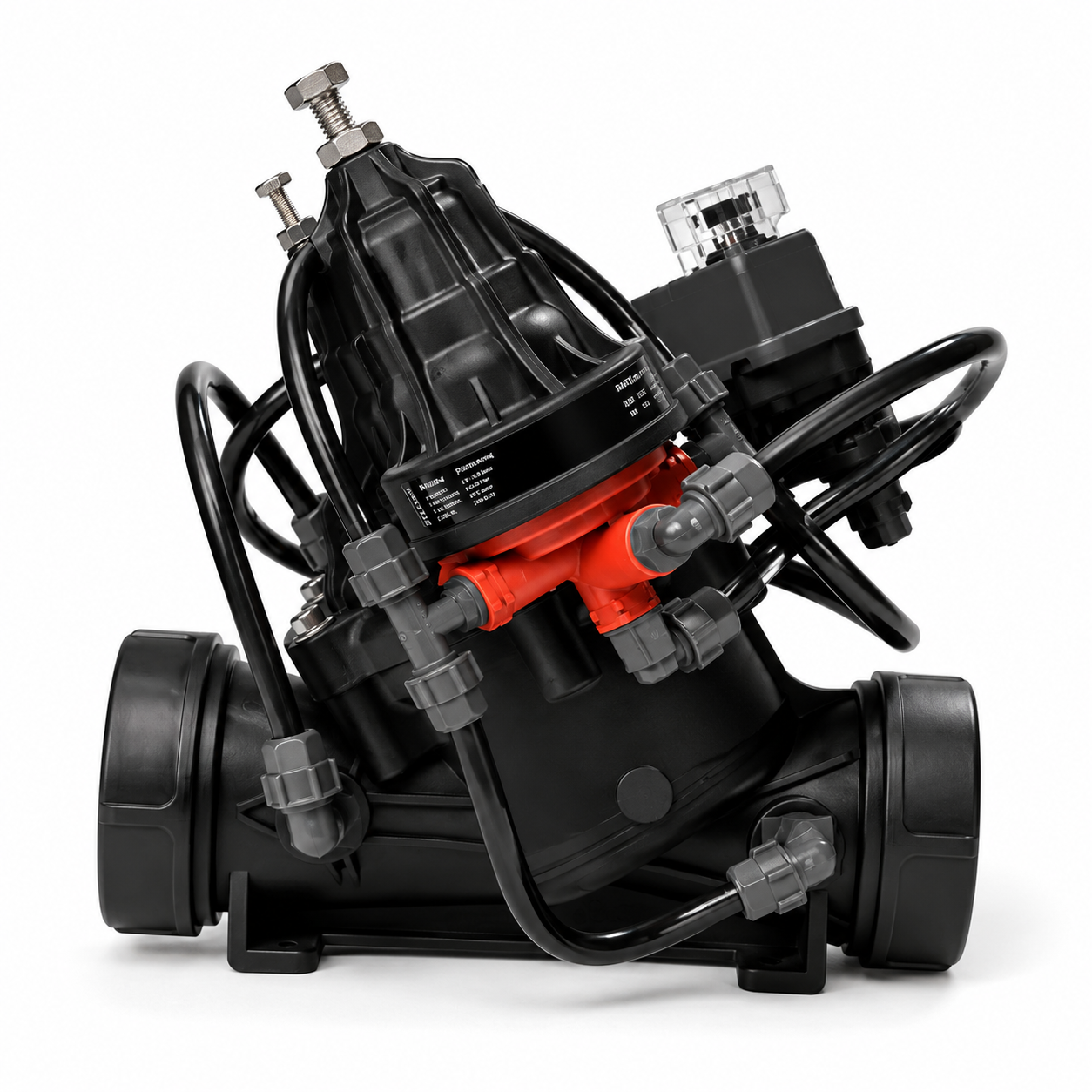

Helix Hydro Plastic Hydraulic Control Valves
The major development of a market garden row-crop property in northern Victoria focused on installing Helix...
Sizes
25-150mm
Connections
25-80mm BSP threaded, 80-150mm flanged
Pressure Rating
10 Bar
Material
Glass reinforced nylon
10 Bar Rated
| Plumbing Configuration | Product Code |
|---|---|
| Basic Valve | HVH*-B |
| Manual Valve With 3-Way Tap | HVH*-3W |
| Hydraulic Remote Control With Relay | HVH*-HR |
| Electric 24V AC 3-Way Solenoid | HVH*-EL |
| Pressure Reducing With 3-Way Tap | HVH*-PR-3W |
| Pressure Reducing Electric 24V AC | HVH*-PR-EL |
| Pressure Sustaining With 3-Way Tap | HVH*-PS-3W |
| Pressure Sustaining Electric 24V AC | HVH*-PS-EL |
| Pressure Reducing / Pressure Sustaining With 3-Way Tap | HVH*-PR-PS-3W |
| Pressure Reducing / Pressure Sustaining Electric 24V AC | HVH*-PR-PS-EL |
| Float Control Valve | HVH*-FC |
* Insert valve size. Options include 25,50,80,100 and 150mm
Made from corrosion resistant materials including glass reinforced nylon body and cover in addition to a nylon reinforced plastic diaphragm
Valves can be plumbed to suit many applications. The lightweight design ensures across the board suitability
Diaphragm and spring replacement parts available. Easy changeover.
Set and forget. Minimal maintenance required with no downtime due to product failures
| Specification | Value |
|---|---|
| Sizes | 25-150mm |
| Connection Type | BSP threaded, flanged |
| Pressure Rating | 10 Bar |
| Max Temp | 65°C |
| Certification | ISO 9001 |
| Dimension | Value |
|---|---|
| Sizes | 25-150mm |
| Connection Type | BSP threaded, flanged |
| Pressure Rating | 10 Bar |
