Maximum Flow Range
7-8 L/hr
Pressure Rating
8 Bar maximum
Ingress Protecion
IP65

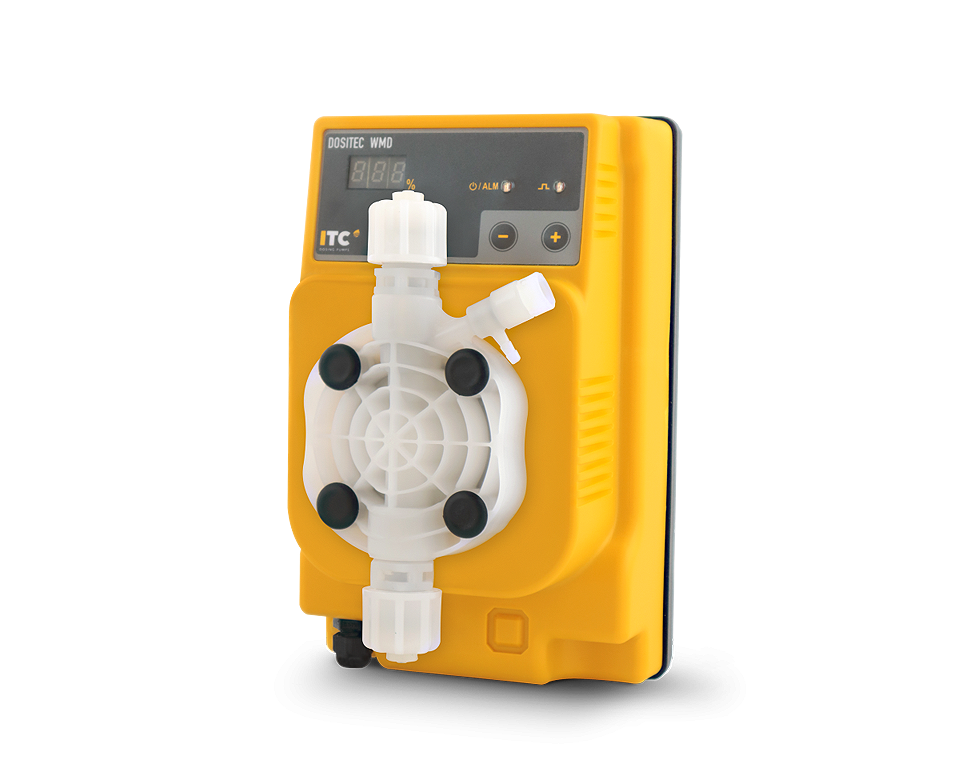

| Cat. No. | Description | Max Flow L/hr |
|---|---|---|
| DOS-WMD8 | 0 -100% manual control via push button | 8 |
| DOS-WMF7 | Multifunctional unit control options include manual, proportional injection via pulse water meter or 4-20m4 signal | 7 |
| DOS-WMF8 | Multifunctional unit control options include manual, proportional injection via pulse water meter or 4-20m4 signal | 8 |
Sophisticated diaphragm mechanism ensures precise and uniform dosing.
Manufactured with materials that resist most liquid products used in dispensing.
Level sensor functionality allows for accurate monitoring and control.
Flow rate can be modified to give fewer pulses per hour resulting in less product dosing.
| Specification | Value |
|---|---|
| Maximum Flow Range | 7-8 l/hr |
| Pressure Rating | 8 Bar maximum |
| Materials | Cylinder: PVDF, Diaphragm: PTFE, Sealing: Viton®, Body Valve: PVDF, Ball Valve: Pyrex® |
| Weight | 2.6 kgs |
| Connections | Hose 4x6 |
| Dimension | Value |
|---|---|
| Maximum Flow Range | 7-8 L/hr |
| Pressure Rating | 8 Bar maximum |
