Filter Sizes
50-80mm
Flow Range
14 -40m³/hr
Connection
BSP female thread
Material
Reinforced polypropylene
Pressure Sustaining Valves
In some cases a quick acting hydraulic pressure sustaining valve may be required where there is not enough flow or water pressure to backwash the filter. These applications can be discussed with our engineers.

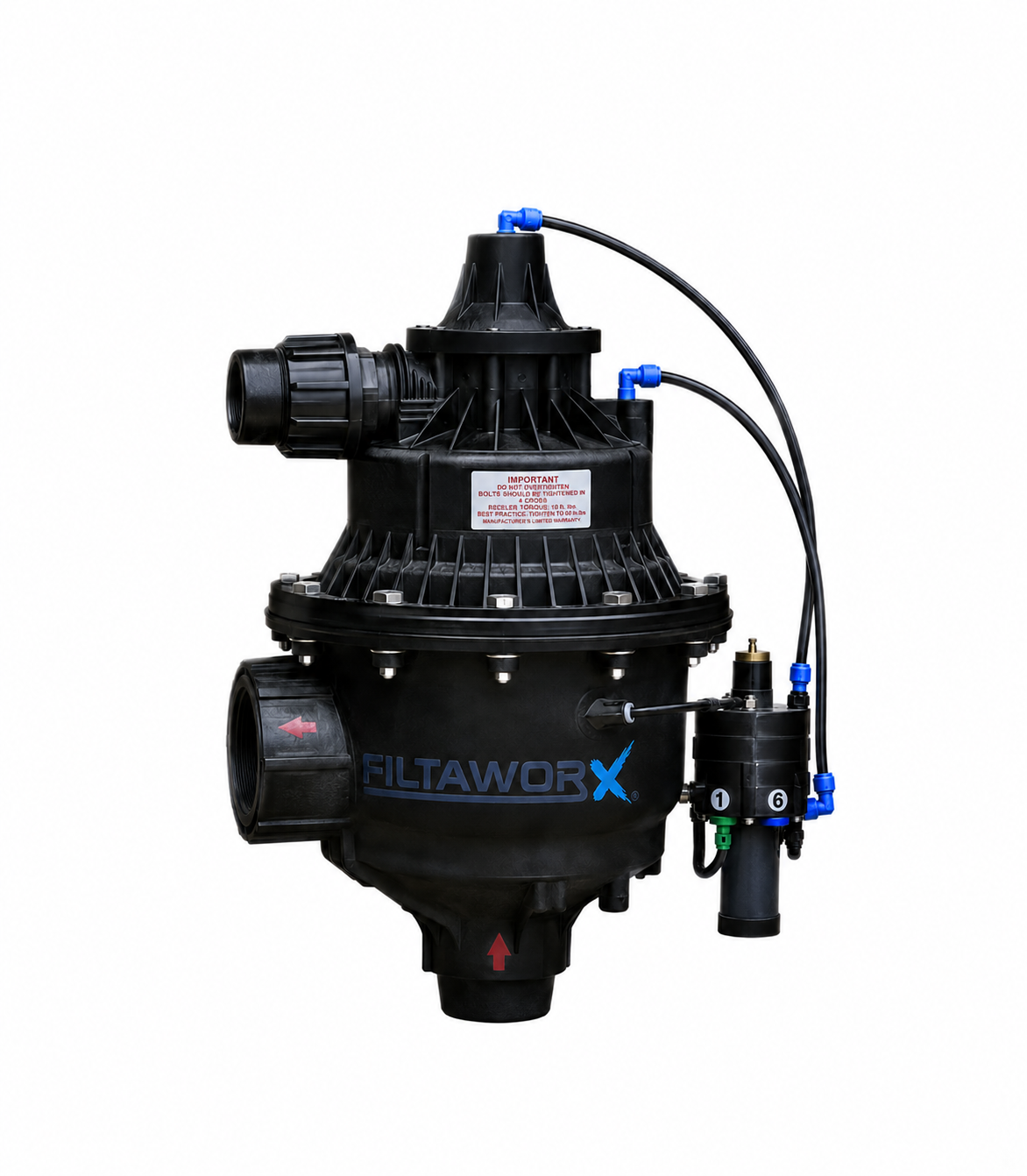

No external power required. Supplied with hydraulic differential pressure rinse controller
| Model No. | Size (mm) | Flow Rate m3/hr | Filter Area cm2 | Pressure Rating |
| PF-050 | 50 | 14-25 | 1217 | 6 Bar |
| PF-080 | 80 | 14-40 | 1217 | 6 Bar |
Suppled with an electrical controller allowing backwash to be initiated by both differential pressure and timer
| Model No. | Size (mm) | Flow Rate m3/hr | Filter Area cm2 | Pressure Rating |
| PF-050-EL | 50 | 14-25 | 1217 | 6 Bar |
| PF-080-EL | 80 | 14-40 | 1217 | 6 Bar |
Cleaning cycle initiated by pressure differential and/or timer
No downtime during backwash cycle
Largest screen area in its class
Available with hydraulic controls as standard. Electric controls available upon request
Made from corrosion resistant materials throughout
50–800 µm, easy on-site changeover
| Specification | Value |
|---|---|
| Inlet/Outlet Size | 50 or 80mm |
| Flow Rate | 14 -40m³/hr |
| Pressure Rating | PN06 |
| Filtration Area | 1217cm² |
| Control Type | Hydraulic or Electric |
| Max Temp | 65°C |
| Cleaning Trigger | Pressure differential 50 kPa or timer |
| Backflush Duration | 5–15 seconds |
| Certification | ISO 9001 |
| Dimension | Value |
|---|---|
| Inlet/Outlet Size | 50 or 80mm |
| Flow Rate | 14 -40m³/hr |
| Filtration Area | 1217cm² |
