Helix Hydro Plastic Hydraulic Control Valves
The major development of a market garden row-crop property in northern Victoria focused on installing Helix...
Filter Sizes
50 to 800 microns
Flow Range
14 -100m3/h
Connection
50mm, 80mm, 100mm and 150mm Threaded and multiple flanged options
Material
SS304 grade as standard
| Cat. No. | Fits into Cat. No. | Description |
|---|---|---|
| TD20-ORB | TD20 | Body ‘O’ Ring 20 mm inline disc filter |

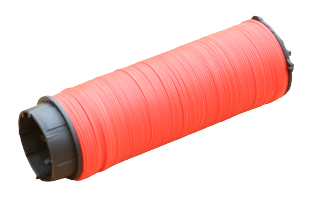

| TDP20 | Disc pack 20 mm inline disc filter | |
| TD20-MB | Main Body, with inlet & outlet for 20 mm disc filter | |
| TD20-B | Filter Bowl, with flush port for 20 mm filter | |
| TD25-ORB | TD25 | Body ‘O’ Ring 25 mm inline disc filter |
| TDP25 | Disc pack 25 mm inline disc filter | |
| TD25-MB | Main Body, with inlet & outlet for 25 mm disc filter | |
| TD25-B | Filter Bowl, for 25 mm disc filter | |
| TD32-ORB | TD32 | Body ‘O’ Ring 32 mm inline disc filter |
| TDP32 | Disc pack 32 mm inline disc filter | |
| TD32-MB | Main Body, with inlet & outlet for 32 mm disc filter | |
| TD32-B | Filter Bowl, for 32 mm disc filter | |
| TD40-ORB | TD40 | Body ‘O’ Ring 40 mm inline disc filter |
| TDP40 | Disc pack 40 mm inline disc filter | |
| TD40-MB | Main Body, with inlet & outlet for 40 mm disc filter | |
| TD40-B | Filter Bowl, for 40 mm disc filter | |
| TEI50-ORB | TE50 | Body ‘O’ Ring – 50 mm ‘TEE’ disc filter |
| TEI50-ORP | Disc pack ‘O’ ring | |
| TEIP50-mesh | Disc pack 50 mm ‘TEE’ disc filter 80 & 120 mesh – Ø 300 x 130 mm | |
| TEI50-MB | Main Body, with 50 mm inlel & outlet | |
| TEI50-B | Filter Bowl for 50 mm ‘TEE’ filter including the locking nut | |
| TDI80-ORB | TD80 | Body ‘O’ Ring – 80 mm disc filter |
| TDI80-ORP | Disc pack ‘O’ ring | |
| TDIP80-mesh | Disc pack 80 mm filter 80 & 120 mesh – Ø 420 x 130 mm | |
| TDI80-clamp | Clamp for TD80 disc filter | |
| TDI80-MB | Main Body, with inlet/outlet Including flange | |
| TDI80-B | Filter Bowl for 80 mm ‘TD’ filter | |
| TDI100-ORB | TD80 | Body ‘O’ Ring – 100 mm disc filter |
| TDI100-ORP | Disc pack ‘O’ ring | |
| TDIP100-mesh | Disc pack 100 mm disc filter 80 & 120 mesh – Ø 540 x 130 | |
| TDI100-Clamp | Clamp for TD100 disc filter | |
| TDI100-MB | Main Body with inlet/outlet Including flange | |
| TDI100-B | Filter Bowl for 100 mm TD filter |
Cleans on pressure drop or timer.
No downtime during backwash cycle
Largest screen area in its class
Fully self-sufficient (hydraulic models)
Corrosion-Resistant Design Stainless steel body as standard.
50–800 µm, easy on-site changeover
| Specification | Value |
|---|---|
| Inlet/Outlet Size | 100–450 mm |
| Flow Rate | 40–1400 m³/hr |
| Pressure Rating | PN10 (PN16 optional) |
| Screen Type | Screen Type |
| Filtration Area | 5600–15950 cm² |
| Control Type | Hydraulic / Electric / Electric Drive |
| Max Temp | 65°C |
| Cleaning Trigger | Pressure diff. 40–50 kPa or timer |
| Backflush Duration | 5–15 seconds |
| Certification | ISO 9001 |
| Dimension | Value |
|---|---|
| Inlet/Outlet Size | Inlet/Outlet Size |
| Flow Rate | 40–1400 m³/hr |
| Filtration Area | 5600–15950 cm² |
